Smart Home Integration: Hidden Wiring Solutions for Motorized Window Treatments

1. Pre-Installed Conduits – The Future-Proof Foundation

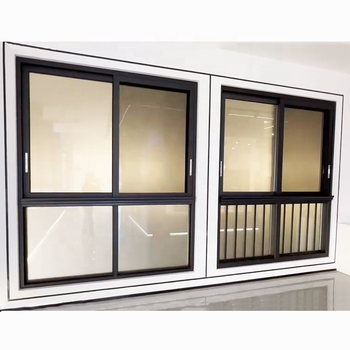

aluminum window frame with pre-wired conduits

Manufacturing Innovation:

Dedicated Channels: 16-20mm PVC conduits cast into window frames

Quick-Connect Terminals: Plug-and-play wiring hubs at frame corners

Why It Matters:

Eliminates post-installation drywall damage

75% faster smart blind installation (ESTA 2023 benchmark)

Pro Tip: Specify EMT metal conduits for high-rise fire safety compliance

2. Hollow-Chamber Aluminum Profiles – The Hidden Highway

Cross-section of aluminum profile showing cable channels

Engineering Advantages:

Multi-Chamber Design: Separate lanes for power (24V DC) & data (RS-485/Matter)

Access Points: Removable gaskets every 600mm for maintenance

Cable Capacity:

| Profile Width | Max Cables |

|--------------|------------|

| 50mm | 3 x 18AWG |

| 80mm | 5 x 16AWG + fiber optic |

Case Study: Schüco AWS 75 profiles reduced hotel blind wiring costs by 40%

3. Solar-Synced Automation – The Energy Game-Changer

Tesla Powerwall dashboard controlling motorized blinds

Tesla Powerwall Integration:

Algorithm Magic:

Tracks real-time solar production

Adjusts blinds to optimize:

Daylight Harvesting (open when surplus solar)

Thermal Buffer (close during peak grid rates)

Savings Data: 12-18% reduction in HVAC loads (NREL 2024 study)

Setup Guide: Requires Home Assistant + Tesla Gateway API handshake
